WAKEFIELD

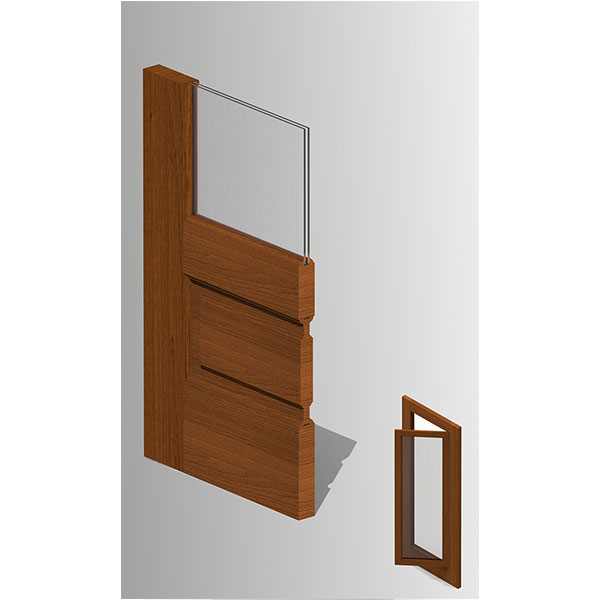

WAKEFIELD Entrance IGU
Timber:
Select grade Meranti
Construction:
Solid Construction Type 4
Thickness:
45 mm

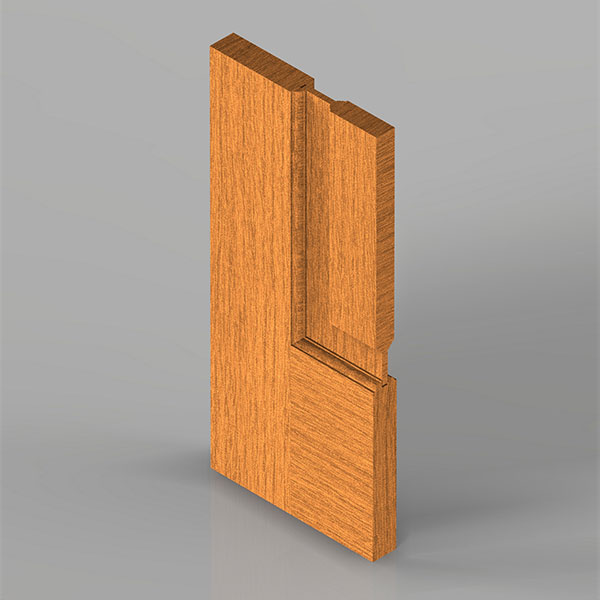

WAKEFIELD Internal
Timber:
Select grade Meranti
Construction:
Solid Construction Type 5
Thickness:
35 mm
Features
Engineered solid timber fielded panel on external entrance doors and veneered chipboard core on the internal series
Ovolo bead on glazed panels
Raw timber finish suitable for staining or painting
Glazing:
The entrance doors are designed to accommodate a range of double and triple glazed IGU’s including Clear and Flemish double glazed and triple glazed Lake Norman leadlight. The glazed internal series glazing options include clear and white translucent laminated safety glasses – other options are available on request. The internal series can accommodate glass up to 6.38 mm thick and the external IGU series up to 16 mm.
Accessories:
Optional iron grilles are available for both the 1 Lite and 2200 series entrance doors. Quality ball bearing black (Oil rubbed bronze) hinges are available to match the iron grilles.
Timber Frame:
Quality 45 mm rebated Meranti frames are available with Raven RP550 or RP650 weather seals.
WAKEFIELD Entrance
